GateKeeperX

Project Overview

GateKeeperX is a production-grade Web Application Firewall (WAF) that acts as a reverse proxy, sitting between clients and backend applications. It intercepts all incoming traffic and applies intelligent rate limiting, IP blocking, and adaptive defense escalation to shield the backend from Layer 7 DDoS attacks.

Built for a hackathon, GateKeeperX goes beyond basic rate limiting — it includes a real-time dashboard, a risk scoring engine, financial impact tracking, and an escalating defense system that automatically tightens restrictions as attacks intensify.

Adaptive Defense Modes

Code Sample — Rate Limiter Core

from collections import defaultdict, deque
import time

class RateLimiter:
    def __init__(self):
        self.request_windows = defaultdict(deque)
        self.blocked_ips     = {}
        self.block_counts    = defaultdict(int)
        self.defense_mode    = "NORMAL"
        self.blocked_total   = 0

        self.MODE_LIMITS = {
            "NORMAL":   {"requests": 20, "window": 5, "block_time": 60},
            "ELEVATED": {"requests": 15, "window": 5, "block_time": 120},
            "DEFENSE":  {"requests": 10, "window": 5, "block_time": 300},
        }

    def is_allowed(self, ip: str) -> dict:
        now = time.time()

        # Check active block
        if ip in self.blocked_ips:
            if now < self.blocked_ips[ip]:
                return {"allowed": False, "reason": "IP_BLOCKED"}
            del self.blocked_ips[ip]

        limits = self.MODE_LIMITS[self.defense_mode]
        window = self.request_windows[ip]

        # Slide time window
        while window and now - window[0] > limits["window"]:
            window.popleft()

        if len(window) >= limits["requests"]:
            self._block_ip(ip, limits["block_time"])
            self.blocked_total += 1
            self._escalate_defense()
            return {"allowed": False, "reason": "RATE_LIMIT_EXCEEDED"}

        window.append(now)
        return {"allowed": True}

    def _block_ip(self, ip: str, base_time: int):
        """Exponential backoff per repeat offender."""
        count = self.block_counts[ip]
        duration = min(base_time * (1.5 ** count), 600)
        self.blocked_ips[ip] = time.time() + duration
        self.block_counts[ip] += 1

    def _escalate_defense(self):
        """Auto-escalate defense mode by total blocks."""
        if self.blocked_total >= 100:
            self.defense_mode = "DEFENSE"
        elif self.blocked_total >= 30:
            self.defense_mode = "ELEVATED"

Quick Start

# Clone and setup
git clone https://github.com/raoufats26/GateKeeperX
cd GateKeeperX
python3 -m venv venv && source venv/bin/activate
pip install fastapi uvicorn httpx requests

# Terminal 1 — start protected backend
python3 protected_server/app.py

# Terminal 2 — start GateKeeperX WAF
uvicorn backend.main:app --host 127.0.0.1 --port 8000 --reload

# Test normal traffic
curl http://127.0.0.1:8000/proxy/data
# X-GateKeeperX: Protected
# X-Protected-By: GateKeeperX-WAF-v2.0

# Simulate an attack — watch the dashboard escalate
python3 attacker/attack.py

API Endpoints

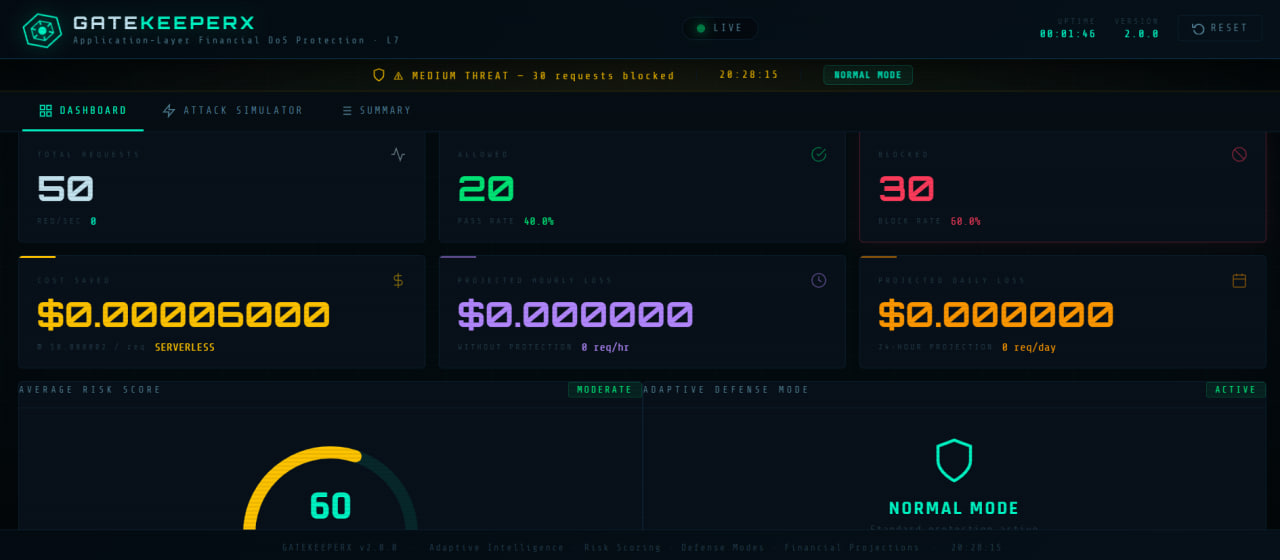

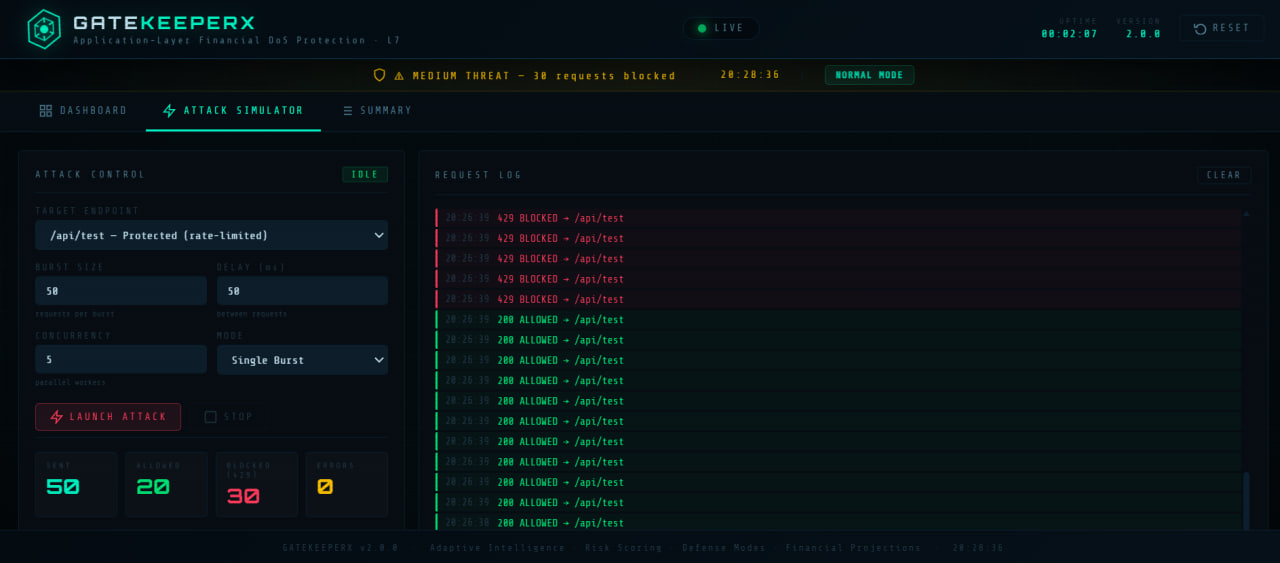

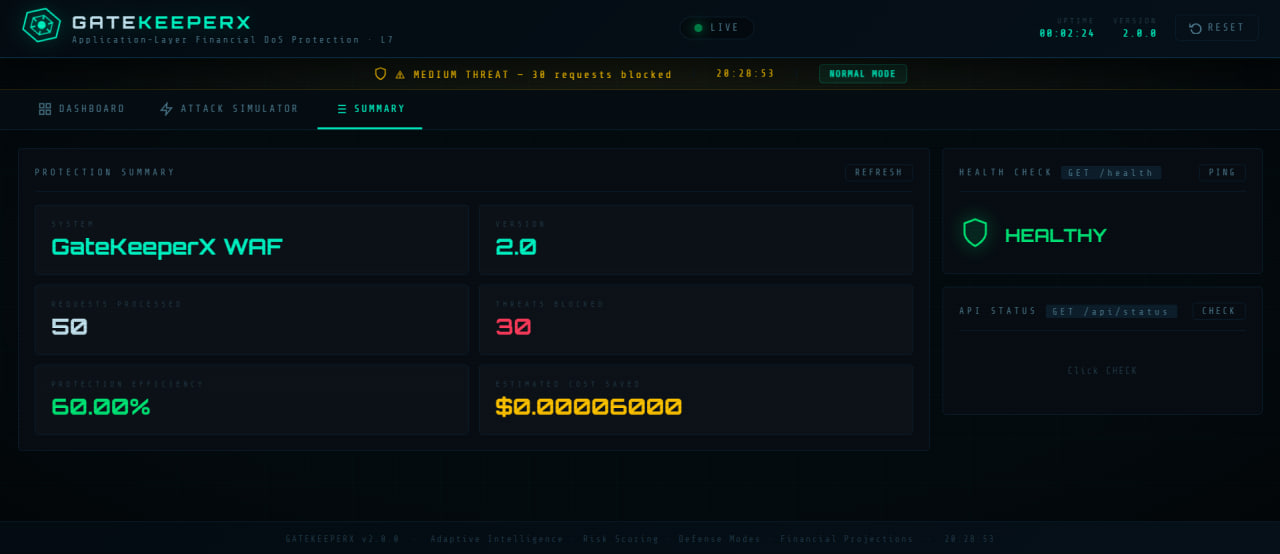

Screenshots
